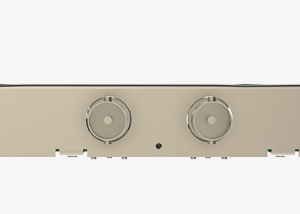

PRO CAPTURE SDI
Captures one of the followings
Captures SD/HD/3G/2K SDI + embedded audio
Loop-through SD/HD/3G/2K SDI + embedded audio
Input Interface
- SD/HD/3G/2K SDI x1
- Support input resolution up to 2048×1080 pixels
Loop-through Interface
- SD/HD/3G/2K SDI x1
- Support loop-through resolution up to 2048×1080 pixels
Host Interface
- PCIe Gen2 x1
Video Engine
10-bit video processing
Deinterlace
Cropping
Color Adjustment
Hardware Timestamp
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
OSD
SG-DMA Transmission mode
Signal Detection & Support
Auto Detection of Input Signal Format
Time Code
Closed Caption
Software Environment
OS
Windows, Linux, Mac
Driver and Firmware
Universal Driver, Updatable Firmware
Included Software
Pro Capture Utility, Capture Express
Compatible Software
>EMPL-G102_Datasheet
>EMPL-G102_Datasheet
