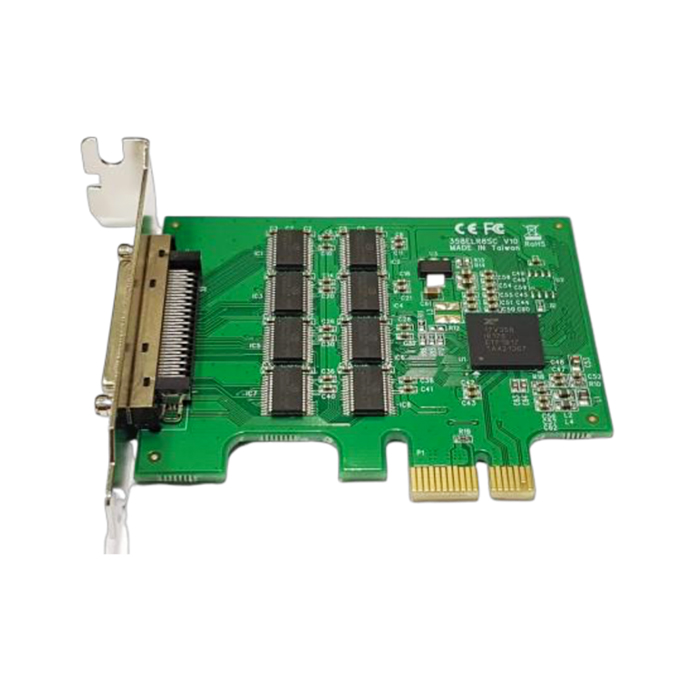

MTE-280 PCI Express 8-Port RS232 Card
- PCI Express base spec 1.1 compliant.
- PCIe 2.0 Gen 1 Compliant.
- 8 Port serial breakout cable
- Eight independent UART channels controller with 16550 compatible register Set.
- Full 256-byte receiver and transmitter FIFOs, fully adjustable IRQ trigger levels and automated flow-control
- RS232 transmission Speed up to 115 kbps
- Automatic Xon/Xoff software flow Control.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
| Model number | MTE-280 |
| Chipset | EXAR-XR17V358 |
| Port number | 8-DB-9 (9 pin; D-Sub) Male |
| Interface | PCIe slot |
| Dimension | 80 (W) x 80 (L)mm |
| Support OS | Windows 7/8.1/10 |
| Environment | Operating Temperature: 0°C to 85°C |
| Storage Temperature: -20°C to 85°C | |
