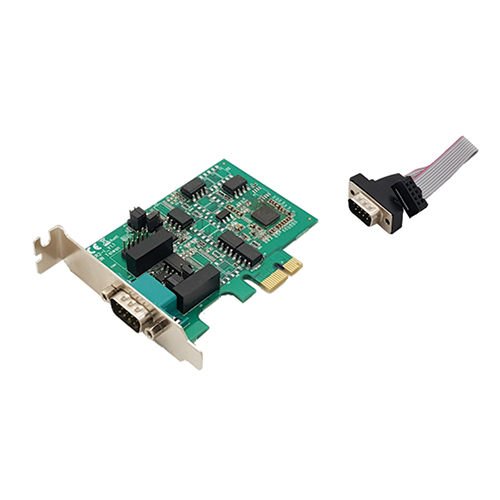

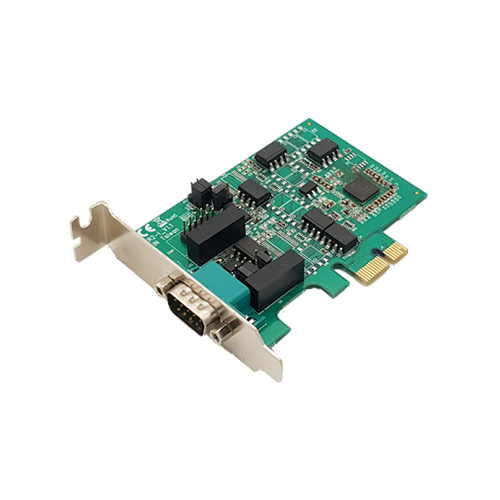

MTE-220AI PCI to 2Port RS23/422/485 Expansion Card, Low Profile (ISOLATION)
- Includes a full profile and low profile/half-height bracket
- Native single chip design
- Supports RS232, RS422, RS485 2 wire, and RS485 4 wire modes
- Each port can be set independently
- Built-in ESD (Electro-Static Discharge) protection
- 115.2Kbps maximum baud rate per port
| Model number | MTE-220AI |
| Chipset | EXAR-XR17V354 |
| Port number | 2-DB-9 (9 pin; D-Sub) Male |
| Interface | PCI Express Rev.2.2 compliant |
| Dimension | 80 (W) x 132 (L)mm |
| Support OS | Windows® XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS® 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |
| Environment | Operating Temperature: 0°C to 70°C |
| Storage Temperature: -20°C to 85°C | |
