Compliant with Serial ATA 2.6 specifications and High transfer rate of 1.5 and 3Gbps
Suit for any computer case, mini computer, embedded system, IPC and Rackmount cabinet
Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM
CF card can be the primary bootable device containing the OS and software
On board activity LED for CF access
CF Push bottom ejector on board
CF and PCBA Powered by 4Pin floppy power connector
CF 3.3V / 5V Voltage selection
ATA/ATAPI PIO mode data transfer
ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
ATA/ATAPI-7 Streaming feature set
ATA/ATAPI 48-bit address feature set
SATA hot-plug
100% OS-transparent hardware bridge adapter to support Windows, MAC and Linux, no driver required
Low Profile PCIe Form Factor
Regular size PCIe bracket on board and an additional Low Profile bracket included
Fully RoHS compliant 2 SSD active, if both M.2 & mSATA SSD installed

Mode Name	MTB-CF120
Bus Type	Bridge Board
Chipset
Number of Ports	1-Port CF card 1-Port SATA hot-plug 1-Port 4Pin power connector
Transfer Rate
Dimensions
Operating Temperature	-10°C to 70°C
Storage Temperature	-20°C to 80°C
OS Compatibility	Windows 2000/XP/2003/Vista/7/8/10, Linux, Mac OS

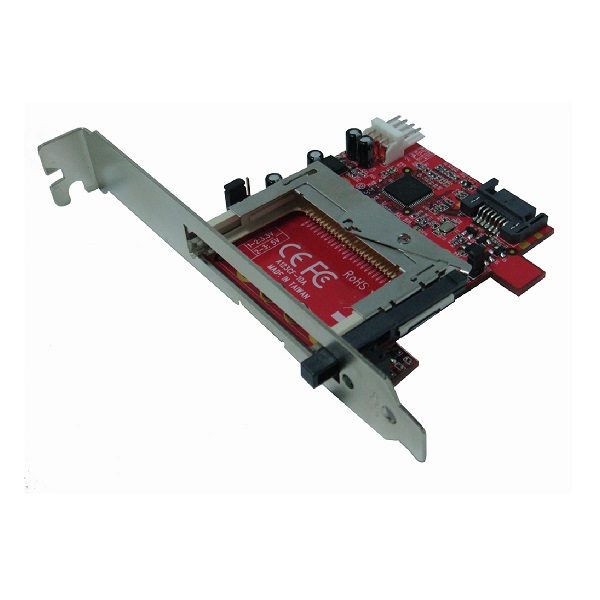

MTB-CF120 SATA to CF Bridge Board
