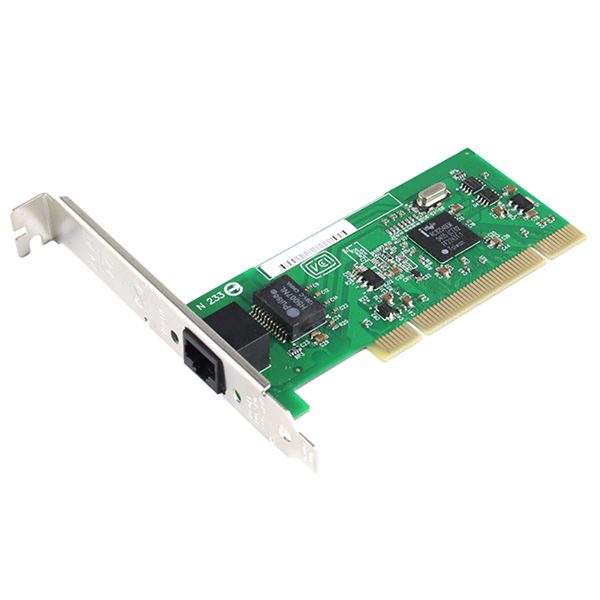

MTN82540i-1RJ is PCI 10/100/1000Mbps Gigabit Ethernet Desktop Network Adapter based on Intel 82540 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.
The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.
The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.
|Transmission rate per port||10/100/1000Mbps|
|Network Standard Physical Layer Interfaces||1000BASE-T:Cat 5eor higherup to 100m|
|100BASE-Tx:Cat5/5e/6or higherup to 100m|
|10BASE-T: Cat3/4/5/5e/6or higherup to 100m|
|Jumbo Frame Support||Up to 9.5 KB|
|Operating Temperature||0 °C to 55 °C (32 °F to 131 °F)|
|Network Virtualization||WoL, PXE|
|LED Indicators||1000Mbps/s:Yellow Link and Green Ack,|
|100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate|
|Operating System Support||Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2|
|Windows 7 / 8 / 8.1 / 10|
|Linux Stable Kernel version 2.6.x / 3.x / 4.x or later|
|Linux SLES 10 / 11 or later|
|VMvare ESX/ESXi 5.x/6.x or later|
